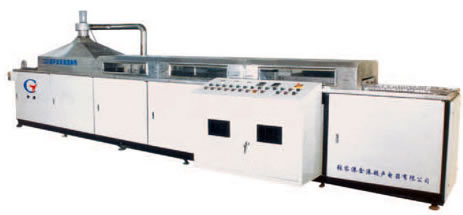

JGD-6J 型系列多功能轴承和机械零部件清洗系统

 JGD-6J Multl-function Cleaning System for Bearings and Mechanical Elements and Units

 本系统是根据轴承及小型机械零部件行业的特点专门设计的清洗系统，主要用于零部件装配前清洗处理，特殊的输送网带，能满足一般中小型承的内外圈清洗要求，循环过滤系统，使清洗液经常保持清洁状态，使工件清洗更干净。

 Introduction :This system is specially designed cleaning system according to the specifications of the industry of small mechanical elements and units ,and it is used for cleaning treatment for elements and units before assembing .And its special conveying net-belt can suit for the cleaning requirements of inner and outer rings of normal small and middle size bearing. The cycle tilting system make the cleaning liquid keeping clean condition and make the workpiece to be sashed more clean.

主要技术参数：
外形尺寸： 6500 × 1700 × 2050( 工作台面 980)
超声功率： 6 × 1000W=6000W
超声频率： 25KHZ 22KHZ
过滤：喷淋过滤器三十英寸、二十英寸各 1 只，清洗过滤器二十英寸 ( 精度 1-20 μ m)
传动速度： 0 ～ 2m/min( 可调 )
有效超声冲洗区域： 3000 × 300 × 100
重量：约 2150kg

适用范围：轴承内外圈，保持架，钢球，小型机械零部件
Applications: Inner and outer rings of bearings, small size mechanical elements and units
清洗工艺流程：上料→工件退磁→超声清洗→喷淋冲洗→吹干→出料
Technics Process:
Input---Workpieces dis-magnetic---Ultrasonic Cleaning---Spray-cleaning---Blow-drying---Output
